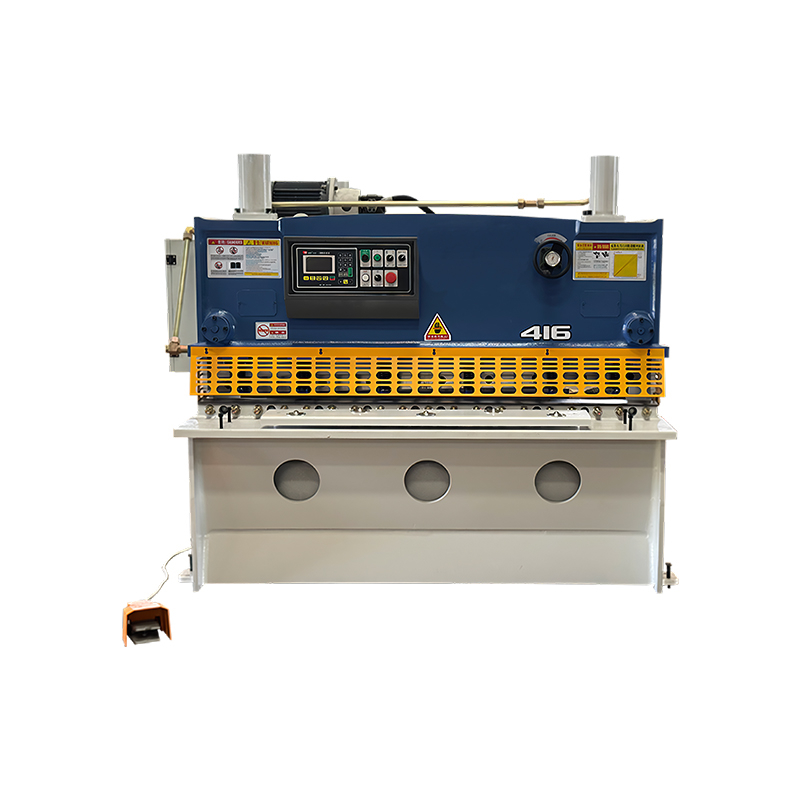

Precision Hydraulic Guillotine Shear

Core Technology

Gate-Type Frame: Welded steel construction (δ=80mm plate) with pre-stressed tie rods

Hydraulic System: Synchronized dual cylinders with proportional valves (0.01mm sync accuracy)

Blade System: Upper blade 1°-2.5° inclination angle, lower blade ground to 0.02mm flatness

CNC Control: Siemens 808D Advanced with linear encoder feedback (±0.05mm positioning)

Precision Features

Blade Guidance: 8-point gib adjustment (0.03mm clearance)

Digital Clearance: Micrometer readout (0.01mm resolution)

Parallelism Control: ≤0.05mm/m across cutting length

Angle Compensation: Auto adjustment for blade wear

Industry Applications

Shipbuilding: Hull plates, bulkheads

Structural Steel: Beam flanges, gusset plates

Tank Fabrication: End caps, shell courses

Mining Equipment: Chute liners, crusher frames

Pressure Vessels: Head blanks, shell sections
